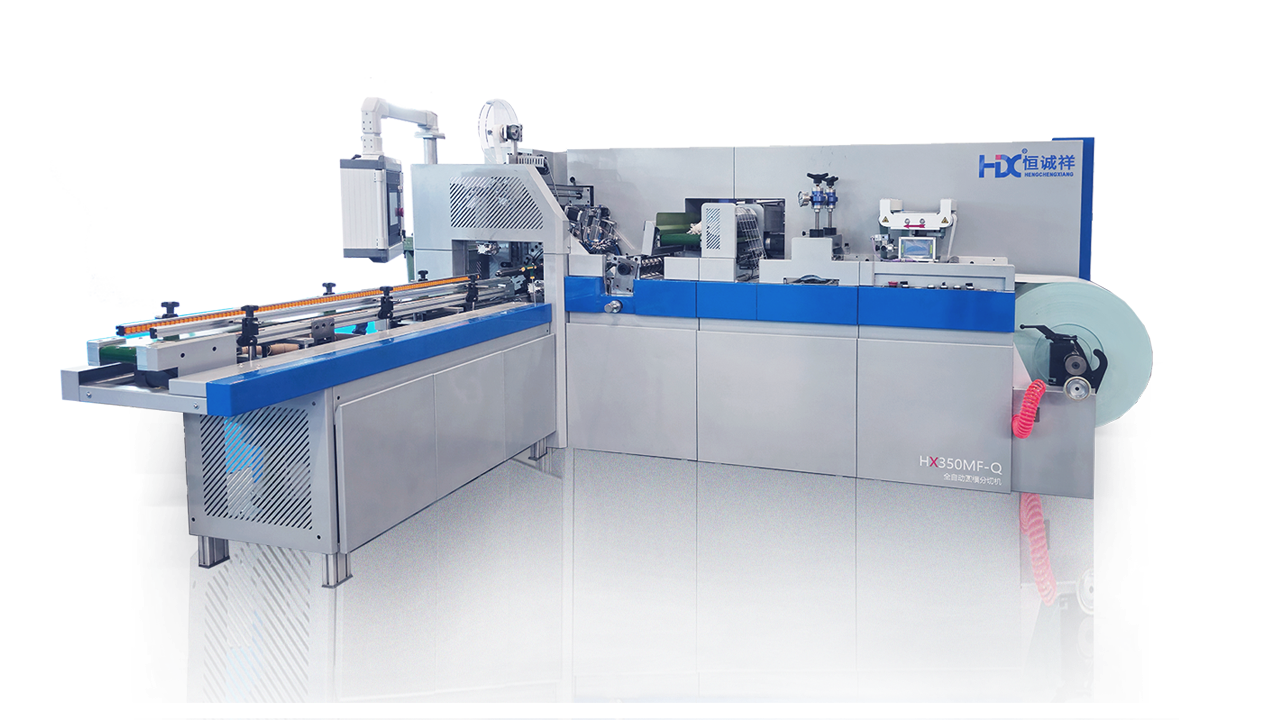

HX570MF-Q die cutting machine is a new wide width die cutting and slitting product developed by our company according to the needs of domestic and foreign markets.
This machine has such functions as paper feeding, deviation correction, die cutting, line pressing, waste cleaning, slitting, rewinding, cutting, labeling, threading tube core, and finished product delivery.
It can realize automatic paper feeding, automatic deviation correction, independent waste discharge, automatic paperless shutdown, automatic threading tube core, automatic cutting, automatic labeling, and finished product delivery. It does not need manual participation in the whole process. It can realize the whole process automatic workcycle, with fastworking speed and excellent performance. It is a new generation of ideal self-adhesive die-cutting equipment.
Servo motors are used in many parts of this die-cutting machine to ensure the accuracy of each step. The unique tension system and deviation correction system design enable the same high-quality products to be processed from the basepaper with different thickness and elastic edges.
The machine adopts frequency converter speed regulation and PLC control. The operation interface is touch screen and automatic tension device.
It is easy to operate and fast to adjust. This machine has the accurate length counting function and the whole machine’s original paper length counting function.
This machine uses high-quality materials, high-quality accessories,
advanced technology, and imported bearings to ensure the durability of the machine!
Configuration of main components
Main motor | Mikom |
Touch screen | Wecon |
PLC | Mikom |
Press Key | Simens |
Cylinder | Air TAG |
Solenoid valve | Air TAG |
Bearing | NSK |
Barometer | Air TAG |
Gear | High precision grinding |
Automatic counting device | Hall switch |
Waste discharge device | Servo waste discharge system |
Web guide system | ORIENTALDATA |
Magnetic particle brake | Chinese brand |
Magnetic particle clutch | Chinese brand |
Tension controller | WENNEW, ZXTEC |
All cast iron steel plate | Overall frame |
Complete machine | Metal baking paint |
Technical parameters
Working speed | 0-120m/min |
Max. unwinding width | 570mm |
Min. unwinding width | 100mm |
Min. die cutting width | 15mm |
Max. unwinding diameter | ∅800mm |
Max. die cutting rewinding diameter | ∅200mm |
Min. die cutting rewinding diameter | ∅25mm |
Max. diameter of die cutting rewinding paper | ∅80mm |
Inner diameter of base paper core | ∅76mm |
Paper loading method | Electric automatic paper feeding |
Deviation correction method | Ultrasonic |
Magnetic roller pressure regulation method | Pressure gage |
Installation method of magnetic roller | Drawertype (hydraulic trolley) |
Main motor | servo |
Method of threading the core | Automatic |
Cut method | Automatic |
Method of rolling pape | Slotting tool |
Winding shaft | 3 PCS |
Blanking method | Automatic |
Labeling method | Automatic |
Power | 380V/50HZ/3HP |
Compressed air | 0.8Mpa |
Dimension | 4040x3960x1880 |
Total weight | 4500kg |
