AUTOMATIC SLITTER REWINDER 250m/min
- HX350MF-S (SERVO MOTOR)

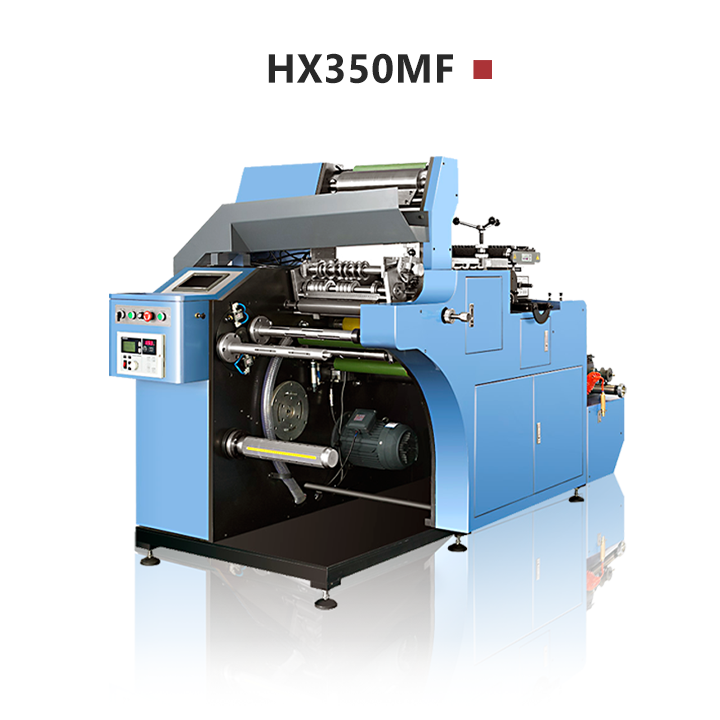

- HX350MF
- Automatic Roll lift.
- Electronic web guidance system with an ultrasonic sensor.
- Two (2) Electronic tension control-Automatic (close loop).
- Two (2) nip rollers.
- Pneumatic air shafts for both unwind and rewind
- Two (2) Rotary Die Cutting stations
- Main Die cutting station, pneumatic lift for the magnetic cylinder.
- Second die cutting unit programmed by touch screen (servo model).
- Waste type (scraper type-1.5mm, min matrix line)
- Touch screen
- Slitting unit with ten rotary knives
- Turret rewinder
- Rewinder

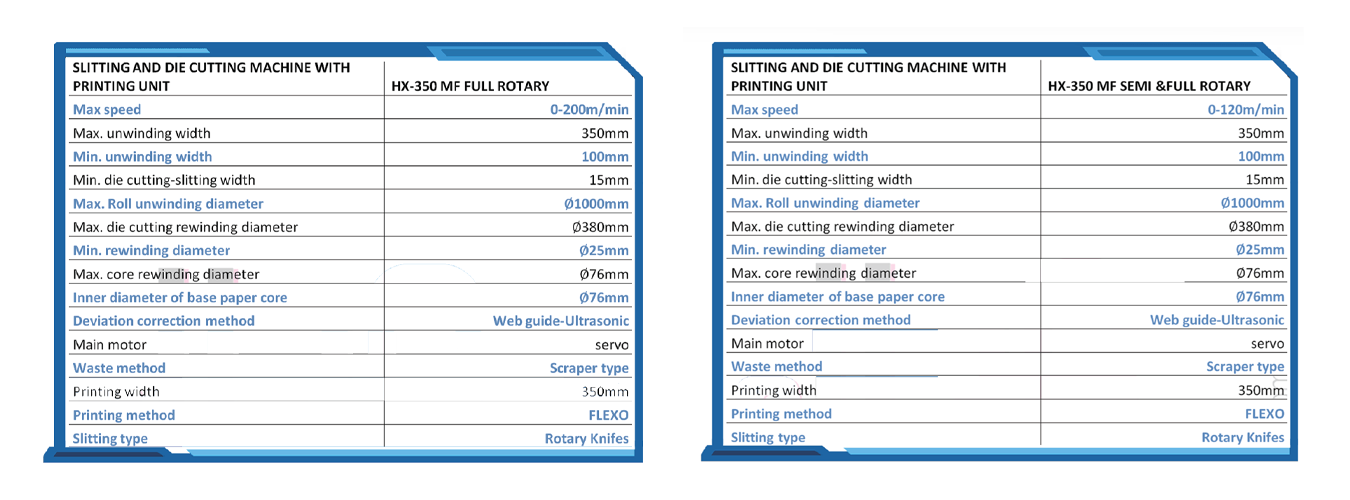

| TYPE | HX350MF | HX350MF-S (servo) |
| SLITTING SPEED m/min | 150 (mechanical speed) | 170 (mechanical speed) |
| MAX WIDTH | 350mm | 350mm |
| MIN DIE CUTTING WIDTH | 15mm | 15mm |
| ROTARY DIE CUTTING STATIONS | 2
(rotary die-perforating) |
2 (second with different speed from the first) |
| UNWINDIND DIAM. | 800mm | 800mm |
| REWINDING DIAMETER | 630mm | 630mm |
| TURRET DIAMETER | 300mm | 300mm |
| WASTE TYPE | Scraper Type | Scraper Type |
| OVERAL DIMENTIONS | 2550x1550x1700 | 2550x1550x1700 |
